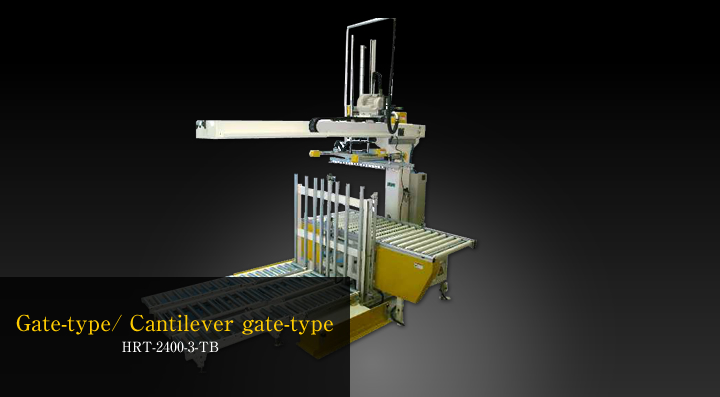

| Structure | Gate-type/ Cantilever gate-type |
|---|---|
| Lifting Methods | ① Vacuum pump + Adhesive-pad→Normal items ② Blower＋Adhesive-pad→When blowing air ③ Full-Grip style→Odd-shaped items, frames etc |
| With the table-lifter →ＴＢtype SPEED・・・8～10pieces／min. Without the table-lifter→ＬＴtype SPEED・・・4～5pieces／min. |
|
Save space via parallel movement.
Inserter and loader in 1!
Adhesive or Grip system to prevent scratches.
Various functions for your needs.
New wide-width panel robots（第２テノーナの前）available!
Conveyer, Table-lifter,
Centering-conveyer, Standby-conveyer, Panel, Bar-separation device.
| Size of the Panel | Smallest → Width 150㎜×Length 300㎜ Largest → Width 900㎜×Length 2400㎜ |
|---|---|
| Thickness and Weight of the Panel | Thickness → 15～50㎜ Weight → up to 30㎏ (with option) |
| Inserting and loading Height Limit | Up to 1200mm on palette or winch |
