The inserter, the loader, and the direction-changer: 3 in 1 model.
Customizable for your factory with various options.
Adhesive or Grip system to prevent scratches.
Installation on various lines is possible by combining the inserter, the loader, and the direction-changer.
The total- bulb style: no need to change the set; fits all sizes and shapes
All-Adhesive Pads System
Because a small putt is attached to the entire adsorption part, it is OK from a big thing to a small thing.
★ For inserting molder-wrappings
★ For easy insertion of narrow-width or bar-shaped materials.
| anel Size | Smallest → Width 150㎜×Length 300㎜ Largest → Width 900㎜×Length 2400㎜ |
|---|---|
| Panel Thickness and Weight | Thickness → 15～50㎜ Weight → up to 30㎏ |
| Processing Speed | Large items → 6 pieces／min. Small items → 12 pieces／min. |

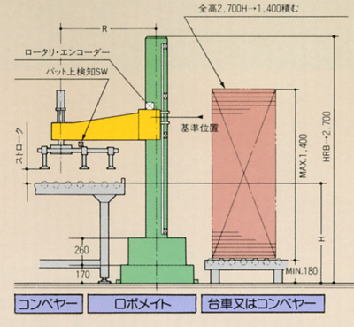

| Inserting and Loading Height Limit | Up to 1450mm on a 200mm winch |
■Fixed, Parallel, or Rotating Types
■3-D Image of the machine
