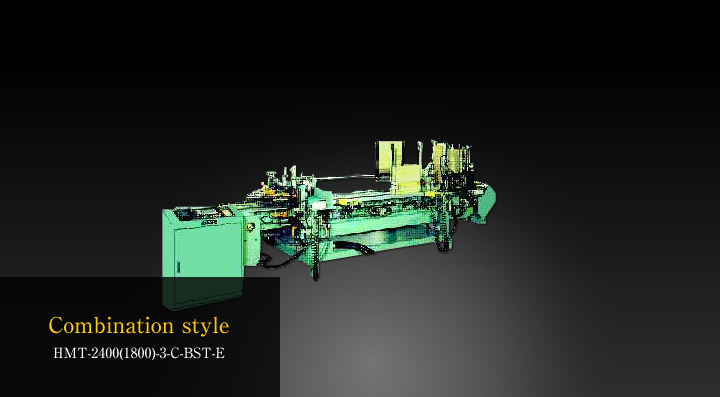

| Model | HMT-2400(1800)-3-BST | |
|---|---|---|
| Frame Size | Length | 250mm～2500mm(1900mm) |
| Inner width/ thickness | Inner width 170mm～900mm・thickness 8mm～50mm | |
| Capacity | ８ stations | Frames shorter than 1200mm(900mm)→14(16) pieces/min |
| ４ stations | Frames longer than 1200mm(900mm)→7(8) pieces/min | |
| Glue | Special Hot-melt glue | |
| Tucker | Machine | Standard model: TA-35A with long-magazine |
| Staples | Standard model: 300 staples、J-line 1006～1013J | |
| Speed | Gears with inverters 7～28m/min | |
| Voltage / Air capacity | 4Kw/3φ・200V / 400NL/min more than 7kg/㎡ | |
| Installation size | Width 2000mm × Length 5600 (5000)mm × Height 1600mm | |
| Weight | 2600(2400)kg | |
| ① | Rail A feeding | Up to 20～100mm |
|---|---|---|
| ② | Rail B feeding | Up to 20～60mm |
| Rail C feeding | Up to 20～60mm | |
| ③ | Rail AB feeding simultaneous-drop | Up to 90mm |
| ④ | AB feeding minimum distance | Up to 80mm |
| C feeding minimum distance | Up to 40mm | |
| ＊ | B feeding minimum Stock-hopper | Up to 22mm |
1．Hot-Melt style＋2-sided tuckers : can choose tuckers.
2．For almost all materials, such as wood, plywood, ＰＢ・ＭＤＦ.
3．Fast set-change: ４ stations→６minutes・８stations→８minutes／１ set
4．Rail-providing device→With Ａ・Ｂ・Ｃ, three different types of hoppers.
1．Stock-hopper device for Ａ・Ｂ provision→ Insert and store 10 or more times as many rails/stiles.
2．Machines for small frames (doors) or large frames (house partitions).
3．Dog-setting device→ The chains can be set digitally without using the sample frames, faster and more accurate dog setting (up to 64 frame data can be stored, dog inserted manually).
4．Other options : fast set-changing, computer control setting, etc.
