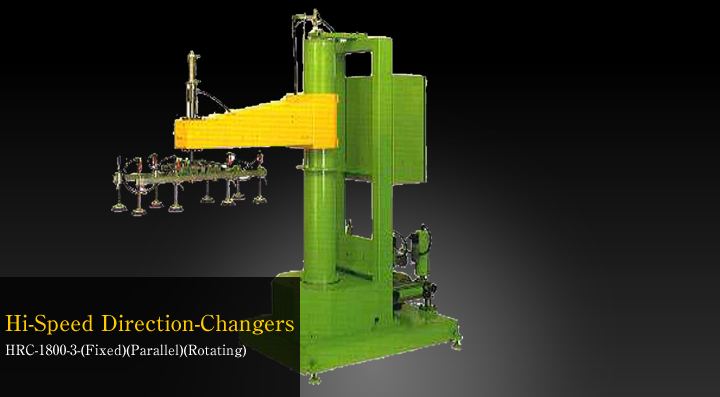

Straight-line and right-angle direction-changer with hi-speed and great performance.
Customizable for your factory with various options.
Adhesive or Grip system to prevent scratches.
Installation on various lines is possible by combining the inserter, the loader, and the direction-changer.
The total- bulb style: no need to change the sets, fits all sizes and shapes.
All-Adhesive Pads System
Because a small putt is attached to the entire adsorption part, it is OK from a big thing to a small thing.
★ For inserting molder-wrappings
★ For easy insertion of narrow-width or bar-shaped materials.
| Panel Size | Smallest → Width 150㎜×Length 300㎜ Largest → Width 900㎜×Length 2400㎜ |
|---|---|
| Panel Thickness and Weight | Thickness → 15～50㎜ Weight → up to 30㎏ |
| Processing Speed | Large items → 10 pieces／min. Small items → 18 pieces／min. |
| With table-lifter and pit installed | Up to 1200mm (length) |
■Fixed, Parallel, or Rotating Types
■3-D image of the machine

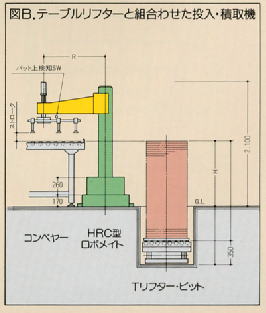

■Table-lifter with the inserter and loader combination
